• MILLIPORE品牌FC-296M库存MYKROLIS进口气体质量流量计控制器促销

•

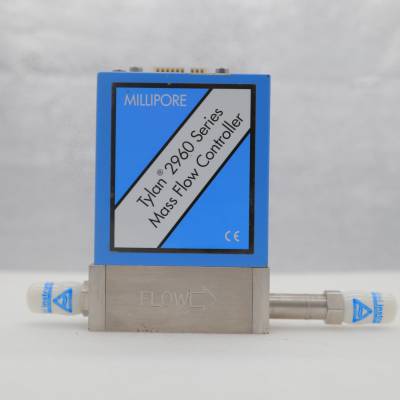

  MILLIPORE品牌FC-2960库存MYKROLIS进口气体质量流量计控制器促销

• Process Values Designed to meet the exacting requirements of semiconductor processes and equipment, the Tylan FC260 and Tylan FM360 models are premium quality elastomer-sealed mass flow controllers and meter. These MFCs combine proven components and techniques with innovative concepts in both mechanical and electrical design.   Excellent Performance Tylan FC260 qnd FM360 mass flow controllers and flowmeters accurately and reliably measure and control flow rates of gases up to 200 standard liters per minute without the need for pressure or temperature corrections.


• Low cost mass flow controllers with long-term repeatability and performance
  Tylan FC260/FM360 Mass Flow Controllers and Flowmeters ?
  FC-260/FM-360
  Fittings H H1 W W1 W2 L L1 L2 L3 L4 L5 S 2S in mm
  5.38 136.7
  4.00 101.6
  1.00 25.4
  0.72 18.3
  0.14 3.56
  3.00 76.2
  3.82 97.0
  4.38 111.3
  4.94 125.5
  2.72 69.1
  0.14 3.56
  0.50 12.7
  4S in mm
  3.82 97.0
  4.44 112.7
  5.03 127.8
  4VCO in mm

• 4.55 115.6

• 4V in mm

• 4.88 123.9

• FC-261/FM-361 Fittings H H1 W W1 W2 L L1 L2 L3 L4 L5 S 4S in mm
  5.63 143.0
  4.25 108.0
  1.25 31.8
  0.97 24.6
  0.14 3.56
  4.25 108.0
  5.16 131.0
  5.78 146.8
  6.36 161.5
  3.55 90.1
  0.35 8.9
  0.575 14.6
  4V in mm

• 6.19 157.2

• 4VCO in mm

• 5.86 148.8

• 6S in mm
  5.17 131.3
  5.90 149.8
  6.48 164.5
  6V in mm

• 6.50 165.1

• FC-262/FM-362 Fittings H H1 W W1 W2 L L1 L2 L3 L4 L5 S 4V in mm
  7.13 181.1
  5.75 146.1
  1.50 38.1
  1.00 25.4
  0.25 6.35
  5.255 133.5
  6.25 158.8
  6.87 174.6
  7.45 189.3
  4.00 101.6
  0.62 15.75
  0.585 14.8
  6S in mm
  6.27 159.3
  7.57 192.3
  7.59 192.7
  6V in mm

•
  6VCO in mm

• 7.10 180.2

• 2S = 1/8-inch Swagelok? 6S = 3/8-inch Swagelok 4S = 1/4-inch Swagelok 6V = 3/8-inch VCR 4V = 1/4-inch VCR? 6VCO = 3/8-inch VCO 4VCO = 1/4-inch VCO?
  Tylan FC260/FM360 MFCs and Flowmeters - Ordering Information
  2
  H1
  W
  H
  S
  L L1
  L3 L2 (face of fittings)
  L4
  L5
  W1
  W2
  0.164”-32 UNC-2B 0.25” DEEP, 2 PLACES
  FRONT VIEW SIDE VIEW
  BOTTOM VIEW
  150  PSIG  MAX
  3
  Tylan FC260/FM360 MFCs and Flowmeters - Ordering Information
  Performance Gases Any gas with a known conversion factor Step Response Time 6 seconds (dependent on step request and conditions) Accuracy ± 1% of full scale ± 2% of full scale for the FC262 Linearity 0.5% of full scale Repeatability ± 0.2% of full scale Attitude Sensitivity Not sensitive Control Range 50:1 (*** - 2%) FC262 50:2 (*** - 4%) Mechanical Materials Type 316 Stainless Steel, Viton?, Kalrez?, or Neoprene Seals depending on gas application Leak Integrity 1 x 10-9 atm cc/sec He Electrical Analog Output 0 - 5 VDC (5 volts = full scale)
  Input Power
  Flow Controllers: + 15 VDC ± 4%, 25 mA max - 15 VDC ± 4%, 180 mA max Flow Meters: + 15 VDC ± 4%, 25 mA max - 15 VDC ± 4%, 25 mA max
  Power Consumption
  Flow Controllers: 4.0 watts maximum Flow Meters: 1.5 watts maximum
  Command Signal
  Flow Controllers: 0 - 5 VDC (2.5 k ohms max source impedance) 40-20 mA optional (contact Mykrolis)
  Minimum Load Resistance 2000 ohms Environmental Temperature Range 5 - 43° C (40 - 110° F) Temperature Coefficient ± 0.1%/° C Pressure Coefficient ± 0.007%/psi Note: In accordance with SEMI Standard E12-91, Standard Temperature is 0° C and Standard Pressure is 760 mm Hg (14.7 psia).
  Model
  Ordering Information
  Flow Controllers FC260 FC261 FC262 Flow Meters FM360 FM361 FM362
  Fitting 2S = 1/8” Swagelok 4S = 1/4” Swagelok 4VC0 = 1/4” VCO 4V = 1/4” VCR 6S = 3/8” Swagelok 6VC0 = 3/8” VCO 6V = 3/8” VCR
  Full Scale Flow* Gas
  Flow Controllers Flow Meters Model FC260 FC261 FC262 FC360 FC361 FC362 Full Scale Range 10 sccm - 5 slm 6 - 20 slm 30 - 200 slm 10 sccm - 5 slm 6 - 20 slm 30 - 200 slm Pressure Drop 10 - 40 psid 15 - 40 psid 20 - 40 psid 0.5 psid at full scale flow
  Gas Pressure 30 psig optimum 150 psid max
  40 psig optimum 150 psid max
  500 psid max
  Gas Fittings 1/8” or 1/4” 1/4” 1/4” or 3/8” 1/8” or 1/4” 1/4” 1/4” or 3/8” Weight 500 gm (1.1 lb) 954 gm (2.1 lb) 2.77 kg (5.0 lb) 454 gm (1.0 lb) 907 gm (2.0 lb) 2.15 kg (4.75 lb

•


•


• 本店专门经营进口气体质量流量计销售，***美国库存进口，全套校准证书，一年质保期。

• 本公司专业销售质量流量计近40年，具有丰富的销售和售后服务经验，我们有专业的服务团队和专业工程师对产品进行跟踪服务。

• 具体产品参数，价格请询价

• 店主:邹积坤

• 电话:13050393336

• 或0415-6132608

•  关于本产品：我们提供全套校准认证书，一年的质保服务。全套认证报告提供，我们有不同气体量程的规格的流量计。

• 购买烦请询价店主，改价后方可付款。

• 关于报价：本店铺所有商品标价并非实际价格，需提供相关信息进行报价.

• 关于合同：我们店铺所有商品在购买时均签订正式购买合同。

• 关于发票：本店产品均可提供增值税专用发票，如有需要请提前告知,建议开发票.

• 关于发货：本店所有产品使用顺丰快递国内免费运送，快速安全送达。

•
